BacnetManager

IMPORTANT

.

Description

.

Plugin Setup

After downloading the plugin, you must first activate it, like any Jeedom plugin :

config

Then, you have to start the installation of the dependencies (even if they appear OK) :

dependances

Finally, start the daemon :

demon

Rien n’est à modifier dans le champ « Port socket interne » de la section « Configuration ».

socket

.

How the plugin works ?

IMPORTANT

Your BACNET equipment must be on the same network as your Jeedom to be detected by it.

By default, a jeeBacnetManager device is created; it is this ‘bacnet’ equipment which will be seen by your Bacnet supervisor on the network

You can configure its deviceId in the plugin configuration

menu

To add Jeedom commands to your jeeBacnetManager, click Add Commands to Server :

accueil

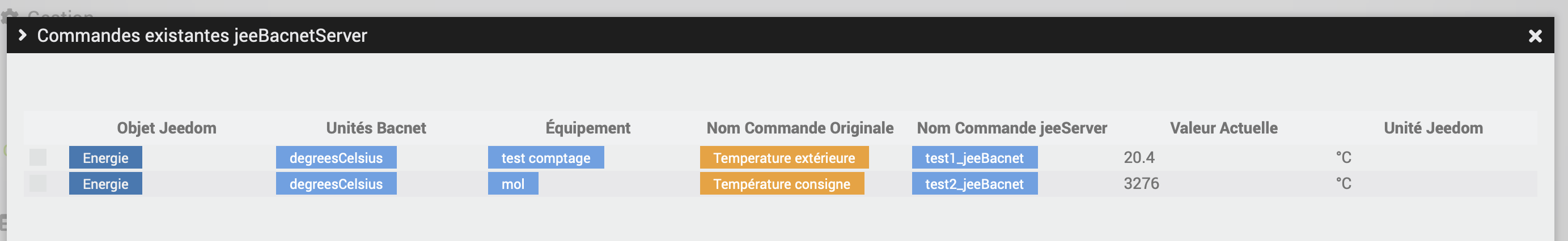

A modal will open, where all the Info type commands present in the different plugins of your jeedom will appear.

IMPORTANT

Your equipment must be Active for commands to be detected on this modal.

You must also name the order, by filling in the field provided for this purpose. Do not put spaces in the command name

syntaxCmds

All you have to do is search for the ones you want, and Validate.

IMPORTANT

accueil

.

:

accueil

:

Command Settings

  1. Action Command Selection : Select an Action command depending on the chosen plugin.
  2. Initial Value : Set an initial value to initialize the Bacnet point for the first time.
  3. Use Bacnet Value : Check this option to use Bacnet value. If this option is not checked, you must fill in the “Value to send to action” field”.

When the cron runs, the system will check if there has been a change of value on the Bacnet point (write). At that point it will send either that Bacnet value or the value entered in “Send to Action” to the configured Action command.

To update the values you need to configure the cron in the plugin configuration.

accueil

Orders Setup :

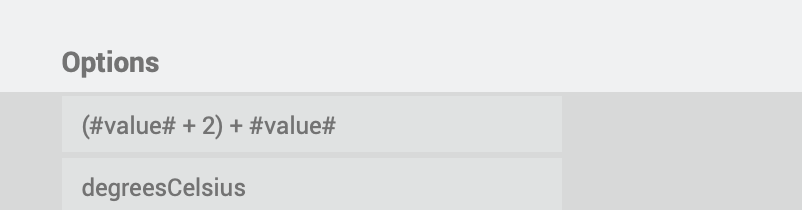

To change the unit of bacnet points, and see them appear on the network, you must choose the unit in the Select menu provided for this purpose on the controls. Jeedom commands of type ‘string’ do not have to select units.

On the bacnet network, the instances of the points will use the names of the commands specified in the field on the Additions of commands modal.

IMPORTANT

accueil

Import/Export the jeeBacnetManager (coming soon)):

accueil

To prevent needs, 2 options are provided :

By clicking on this button, it will download a Json file containing the configuration of the device as well as its commands.

By clicking on this button, you can import the jeeBacnetManager configuration json file that you would have downloaded, to use the commands that were configured in this one

ANNEXE:

List of BACnet Engineering Units)

Engineering units
ampereSeconds
ampereSquareHours
ampereSquareMeters
amperes
amperesPerMeter
amperesPerSquareMeter
bars
becquerels
btus
btusPerHour
btusPerPound
tusPerPoundDryAir
candles
candelasPerSquareMeter
centimeters
centimetersOfMercury
centimetersOfWater
cubicFeet
cubicFeetPerDay
cubicFeetPerHour
cubicFeetPerMinute
cubicFeetPerSecond
cubicMeters
cubicMetersPerDay
cubicMetersPerHour
cubicMetersPerMinute
cubicMetersPerSecond
currency1
currency10
currency2
currency3
currency4
currency5
currency6
currency7
currency8
currency9
cyclesPerHour
cyclesPerMinute
days
decibels
decibelsA
decibelsMillivolt
decibelsVolt
degreeDaysCelsius
degreeDaysFahrenheit
degreesAngular
degrees Celsius
degrees CelsiusPerHour
degrees CelsiusPerMinute
degreesFahrenheit
degreesFahrenheitPerHour
degreesFahrenheitPerMinute
degreesKelvin
degreesKelvinPerHour
degreesKelvinPerMinute
degreesPhase
deltaDegreesFahrenheit
deltaDegreesKelvin
farads
feet
feetPerMinute
feetPerSecond
footCandles
grams
gramsOfWaterPerKilogramDryAir
gramsPerCubicCentimeter
gramsPerCubicMeter
gramsPerGram
gramsPerKilogram
gramsPerLiter
gramsPerMilliliter
gramsPerMinute
gramsPerSecond
gramsPerSquareMeter
gray
hectopascals
henrys
hertz
horsepower
hours
hundredthsSeconds
imperialGallons
imperialGallonsPerMinute
inches
inchesOfMercury
inchesOfWater
jouleseconds
joules
joulesPerCubicMeter
joulesPerDegreeKelvin
joulesPerHours
joulesPerKilogramDegreeKelvin
joulesPerKilogramDryAir
kiloBtus
kiloBtusPerHour
kilobecquerels
kilograms
kilogramsPerCubicMeter
kilogramsPerHour
kilogramsPerKilogram
kilogramsPerMinute
kilogramsPerSecond
kilohertz
kilohms
kilojoules
kilojoulesPerDegreeKelvin
kilojoulesPerKilogram
kilojoulesPerKilogramDryAir
kilometers
kilometersPerHour
kilopascals
kilovoltAmpereHours
kilovoltAmpereHoursReactive
kilovoltAmperes
kilovoltAmperesReactive
kilovolts
kilowatt hours
kilowattHoursPerSquareFoot
kilowattHoursPerSquareMeter
kilowattHoursReactive
kilowatts
liters
litersPerHour
litersPerMinute
litersPerSecond
lumens
luxuries
megaBtus
megabecquerels
megahertz
megajoules
megajoulesPerDegreeKelvin
megajoulesPerKilogramDryAir
megajoulesPerSquareFoot
megajoulesPerSquareMeter
megaAVoltAmpereHours
megaVoltAmpereHoursReactive
megaAVoltAmperes
megaAVoltAmperesReactive
megaVolts
megawatt hours
megawattHoursReactive
megawatts
megohms
meters
metersPerHour
metersPerMinute
metersPerSecond
metersPerSecondPerSecond
microSiemens
microgramsPerCubicMeter
microgramsPerLiter
microgray
micrometers
microsieverts
microsievertsPerHour
milesPerHour
milliamperes
millibars
milligrams
milligramsPerCubicMeter
milligramsPerGram
milligramsPerKilogram
milligramsPerLiter
milligray
milliliters
millilitersPerSecond
millimeters
millimetersOfMercury
millimetersOfWater
millimetersPerMinute
millimetersPerSecond
milliohms
milliseconds
millisiemens
millisieverts
millivolts
milliwatts
minutes
minutesPerDegreeKelvin
months
nanogramsPerCubicMeter
nephelometricTurbidityUnit
newton
newtonmeters
newtonSeconds
newtonsPerMeter
noUnitsohmMeterPerSquareMeter
ohmMeters
ohms
pH
partsPerBillion
partsPerMillion
pascalSeconds
pascals
per hour
perMille
perMinute
perSecond
percent
percentObscurationPerFoot
percentObscurationPerMeter
percentPerSecond
percentRelativeHumidity
poundsForcePerSquareInch
poundsMass
poundsMassPerHour
poundsMassPerMinute
poundsMassPerSecond
powerFactor
psiPerDegreeFahrenheit
radians
radiansPerSecond
revolutionsPerMinute
seconds
siemens
siemensPerMeter
sieverts
squareCentimeters
squareFeet
squareInches
squareMeters
squareMetersPerNewton
teslas
thermals
yourHours
tones
tonsPerHour
tonsRefrigeration
usGallons
usGallonsPerHour
usGallonsPerMinute
voltAmpereHours
voltAmpereHoursReactive
voltAmperes
voltAmperesReactive
volts
voltsPerDegreeKelvin
voltsPerMeter
voltsSquareHours
wattHours
wattHoursPerCubicMeter
wattHoursReactive
watts
wattsPerMeterPerDegreeKelvin
wattsPerSquareFoot
wattsPerSquareMeter
wattsPerSquareMeterDegreeKelvin
webers
weeks
years
